AMT CLUTCHES
Illinois Auto Truck offers four clutch products for AMT applications. The current IATCO product offering covers products for the
UltraShift®, UltraShift PLUS®, Endurant®, Volvo I-Shift & Mack mDRIVE™, and Detroit DT12 transmissions.

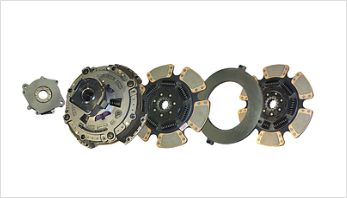

MaxShift Clutch
The patented MaxShift Clutch improves on previously available versions of UltraShift clutches. This design incorporates a dual cam spring feature to provide a strong and balanced adjustment. The over-adjustment protection feature holds the adjustment in place should shock to the truck occur. Includes an inertia clutch brake.
AMT
The AMT clutch offering is utilized with Endurant® transmissions. The diaphragm spring design provides for a maintenance-free and adjustment-free clutch. The release bearing is included with all IATCO AMT clutches.
Detroit DT12
The DT12 clutch included two options for both the 6-spring and 5-spring models. The organic friction material allows for a smooth engagement. The DT12 clutch will work in vehicles produced with DT12 transmission manufactured 2012 to today.
Volvo I-Shift / Mack mDrive
The Volvo I-Shift / Mack mDrive clutches include two options, the first option for vehicles built with A, B, C, D, & E series transmissions, and the second option for F Series Transmissions. These units will work in vehicles with 11L and 13L engines.
MAXSHIFT CLUTCH
IATCO Part Number
O.E.M. Reference
Torque
Plate Load
No. of Springs
Application
Clutch Brake (Included)
Clutch Installation Kit (Not Included)
NMU702-347-8-AF
122002-35A
1850
4200
7 (Pre-Damper)
UltraShift® & UltraShift Plus®
M-2174 (Replaces K-4134)
M-2110 (Replaces K-4145)
NMU702-337-8-AF
122003-42A
2250
4200
7 (Pre-Damper)
UltraShift® & UltraShift Plus®
M-2174 (Replaces K-4134)
M-2110 (Replaces K-4145)
AMT
IATCO Part Number
O.E.M. Reference
Transmission
Application
Release Bearing (Included)
Input Shaft Repair Kit (Included)
NMU363-280-12
K-4488CL
Endurant HD
Paccar - Cummins Engines Navistar A26 Engines Navistar - Cummins Engines Paccar MX Engines
M-2213 (Replaces 125969, A-100004340)
M-2211 (Replaces K-4362)
NMU364-280-12
K-4494CL
Endurant HD
Freightliner - Cummins Engines
Western Star - Cummins Engines
Volvo - Cummins Engines
M-2214 (Replaces 125968, A-10004341)
M-2211 (Replaces K-4362)
NMU365-280-12
K-4545CL
Endurant XD
Paccar - Cummins Engines
Western Star - Cummins Engines
Navistar A26 Engines
M-2213 (Replaces Eaton 125969)
N/A
NMU366-280-12
K-4544CL
Endurant XD
Freightliner - Cummins Engines
Western Star - Cummins Engines
Volvo - Cummins Engines
M-2214 (Replaces Eaton 125968)
N/A
NMU367-280-12
K-4558CL
Endurant XD PRO
Paccar - Cummins Engines
Navistar - Cummins Engines
M-2213 (Replaces Eaton 125969)
N/A
NMU368-280-12
K-4557CL
Endurant XD PRO
Freightliner - Cummins Engines
Western Star - Cummins Engines
Volvo - Cummins Engines
M-2214 (Replaces Eaton 125968)
N/A
NMU369-280-12
K-4560CL
Endurant XD PRO
Paccar - Cummins Engines
Navistar - Cummins Engines
Navistar A26 Engines
M-2213 (Replaces Eaton 125969)
N/A
NMU370-280-12
K-4559CL
Endurant XD PRO
Freightliner - Cummins Engines
M-2214 (Replaces Eaton 125968)
N/A
DETROIT DT12
IATCO Part Number
O.E.M. Reference
Torque
No. of Springs
Clutch Actuator (Not Included)
Alignment Tool (Not Included)
NMU360-280-12
A02-82500-001
A02-14027-008
A02-14135-000
K-4489CL
A02-14027-008
A02-14135-000
K-4489CL
1850
6
A-1002
M-2195
NMU361-280-12
A02-14108-001
A02-14108-002
A02-14108-002
1850
5
A-1002
M-2195
NMU372-280-12
A02-14136-000
A02-14136-001
K-4705CL
A02-14136-001
K-4705CL
2250
6 (Double Disc, Pre-Damper)
A-1002
M-2195
NMU373-280-12
A02-14137-000
A02-14137-001
A02-14137-001
2250
6 (Double Disc, Pre-Damper)
A-1002
M-2195
VOLVO I-SHIFT / MACK MDRIVE
IATCO Part Number
O.E.M. Reference
Torque
No. of Springs
Transmission
Clutch Actuator (Not Included)
Alignment Tool (Not Included)
Solenoid Valve (Not Included)
NMU359-280-12
3400 700 359, 104461-1, 85003114
1850
6
A, B, C, D, E Series
A-1001
M-2188
SV-2001
NMU362-250-12
3400 700 601, 3400 700 640
2360
5
F Series
A-1001
M-2189
SV-2001
